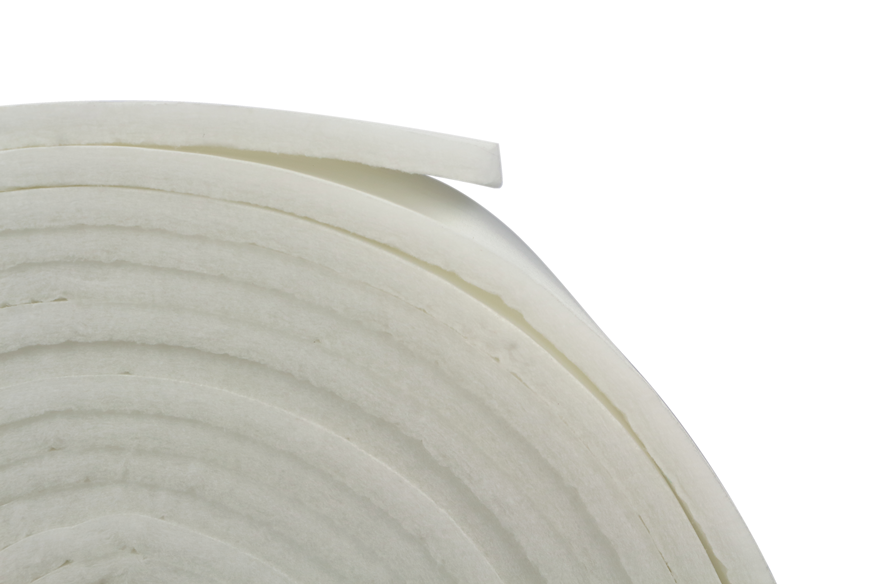

roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth
Speciality of roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth:The series of roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth are mainly used in surface spray-paint industry,Hi-tech electronics,aerospace and other military areas.Composited of imported high-performance,anti-broker synthetic fiber in gradual technology;
Type：SP-560G; JE-560G; ”AAA”3A-560G; PE-560G
Characteristic of roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth:The outlet side of theroof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth is reinforced by import PE-net ,domestic glass fiber net,nylon cloth,domestic non-flammable net.

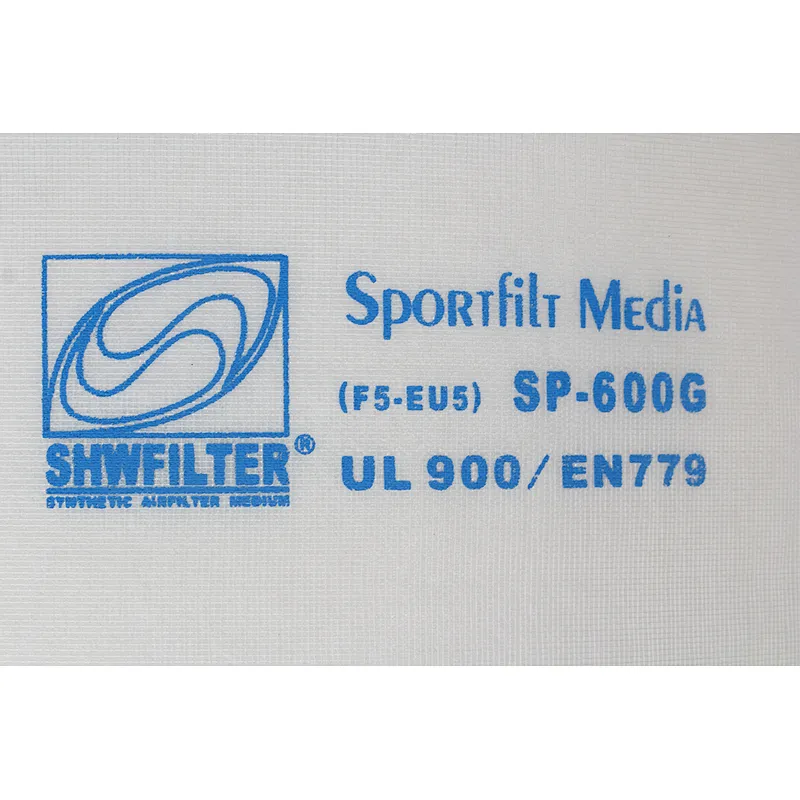

With gradual technology, the fiber density increases gradually toward pure air, high filter efficiency,extended working life.Due to complete penetration of viscosity in media, dust particles can not pass,fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results. roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth is Conforming to European DIN53438-F1 and American UL900-Class2. The outlet side of roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth is printed with EN-779 standard classifications, DIN logo, the registered trademark of SHW. Dense outlet side,the surface is reinforced by covered net scrim, low initial resistance, high dust holding capacity, good fire retardant and long working life, economical and reliable, moisture resistance, up to 100% relative humidity.
Specification of roof filter ceiling filter 560G,High dust holding,ceiling filter for paint booth:
Type | Filter Class | Average Arrestance | Average Efficiency | Nominal Velocity(m/s) | Rated Airflow(m3/h | Initial Resistance(Pa) | Final Resistance(Pa) | Dust Holding Capacity(g/㎡) | Continuous Temperature(℃) | Instantaneous Temperature(℃) | Thickness | Sizes |
| SP-560G | F5 | 96% | 50% | 0.25m/s | 900 m3/h | 25Pa | 450Pa | 400 g/m2 | 100℃ | 120℃ | 25 mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| JE-560G | F5 | 96% | 50% | 0.25m/s | 900 m3/h | 25 Pa | 450Pa | 400 g/m2 | 100℃ | 120℃ | 25 mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| 3A-560G | F5 | 96% | 50% | 0.25 m/s | 900 m3/h | 25 Pa | 450 Pa | 400 g/m2 | 100℃ | 120℃ | 25 mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| PE-560G | F5 | 96% | 50% | 0.25 m/s | 900 m3/h | 25 Pa | 450 Pa | 400 g/m2 | 100℃ | 120℃ | 25 mm | 1.6*21M |
| 2.0*21M |
