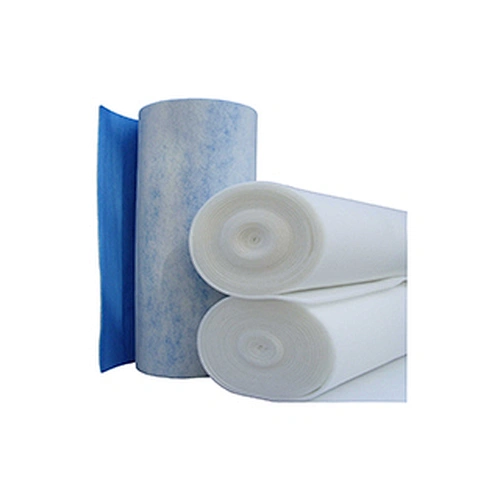

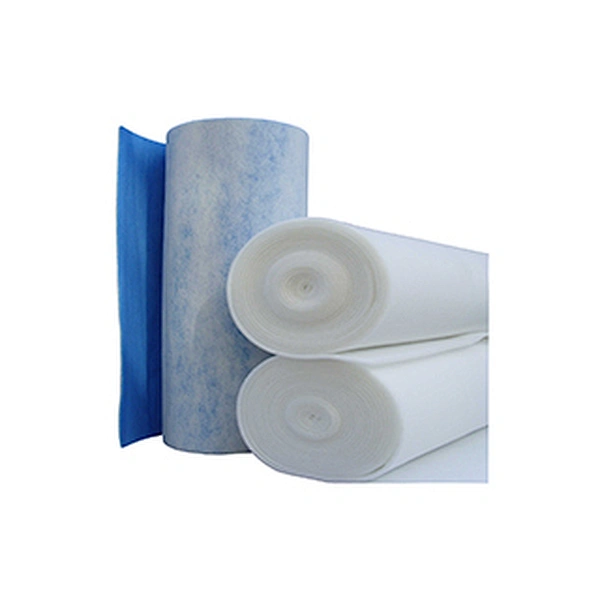

spray booth 600G air filter/600G ceiling filter/spray booth 600G ceiling filter
Speciality of spray booth 600G air filter/600G ceiling filter/spray booth 600G ceiling filter:The series of spray booth 600G air filter/600G ceiling filter/spray booth 600G ceiling filter are mainly used in surface spray-paint industry,Hi-tech electronics,aerospace and other military areas.Composited of imported high-performance,anti-broker synthetic fiber in gradual technology;
Type of spray booth 600G air filter/spray booth 600G ceiling filter:SP-600G; JE-600G; ”AAA”3A-600G; PE-600G
Characteristic of spray booth 600G air filter/spray booth 600G ceiling filter:The outlet side of spray booth 600G air filter/spray booth 600G ceiling filter media is reinforced by import PE-net ,domestic glassfibernet,nyloncloth,domestic non-flammable net.

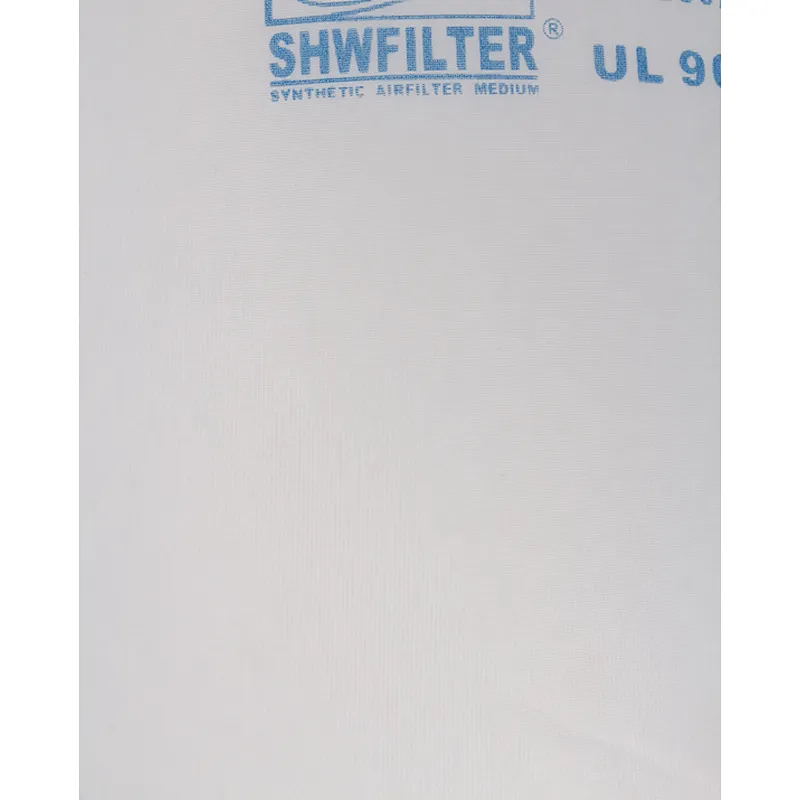

With gradual technology, the fiber density increases gradually toward pure air, high filter efficiency,extended working life.Due to complete penetration of viscosity in media, dust particles can not pass,fully filtered air evenly spreads to form a laminar flow state to achieve the best spray results. Conforming to European DIN53438-F1 and American UL900-Class2. The outlet side of spray booth 600G air filter/spray booth 600G ceiling filter is printed with EN-779 standard classifications, DIN logo, the registered trademark of SHW. Dense outlet side, the surface is reinforced by covered net scrim,low initial resistance, high dust holding capacity, good fire retardant and long working life, economical and reliable,moisture resistance, up to 100% relative humidity.
Specification of spray booth 600G air filter/600G ceiling filter/spray booth 600G ceiling filter:
Type | Filter Class | Average Arrestance | Initial Efficiency | Nominal Velocity(m/s) | Rated Airflow(m3/h) | Initial Resistance(Pa) | Final Resistance(Pa) | Dust Holding Capacity(g/㎡) | Continuous Temperature(℃) | Instantaneous Temperature(℃) | Thickness(mm) | Sizes |
| SP-600G | F5 | 98% | 55% | 0.25m/s | 900 m3/h | 30Pa | 450Pa | 460 g/m2 | 100℃ | 120℃ | 22mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| JE-600G | F5 | 98% | 55% | 0.25m/s | 900 m3/h | 30 Pa | 450Pa | 460 g/m2 | 100℃ | 120℃ | 22mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| 3A-600G | F5 | 98% | 55% | 0.25 m/s | 900 m3/h | 30 Pa | 450 Pa | 460 g/m2 | 100℃ | 120℃ | 22mm | 1.6*21M |
| 2.0*21M | ||||||||||||
| PE-600G | F5 | 98% | 55% | 0.25 m/s | 900 m3/h | 30 Pa | 450 Pa | 460 g/m2 | 100℃ | 120℃ | 22mm | 1.6*21M |
| 2.0*21M |

spray booth 600G air filter/spray booth 600G ceiling filter
