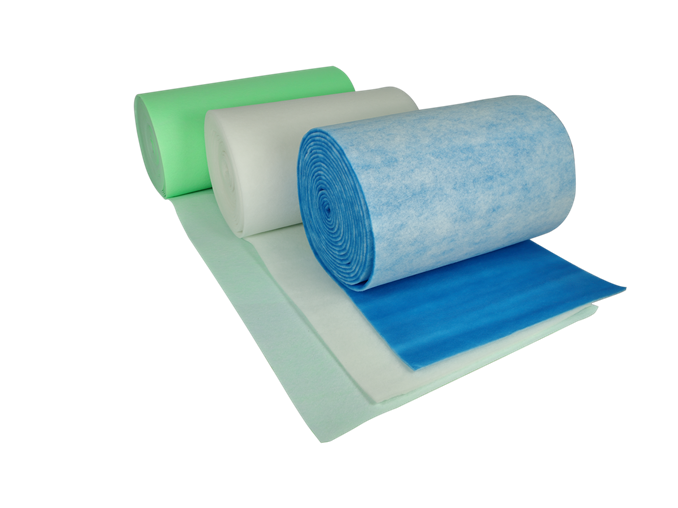

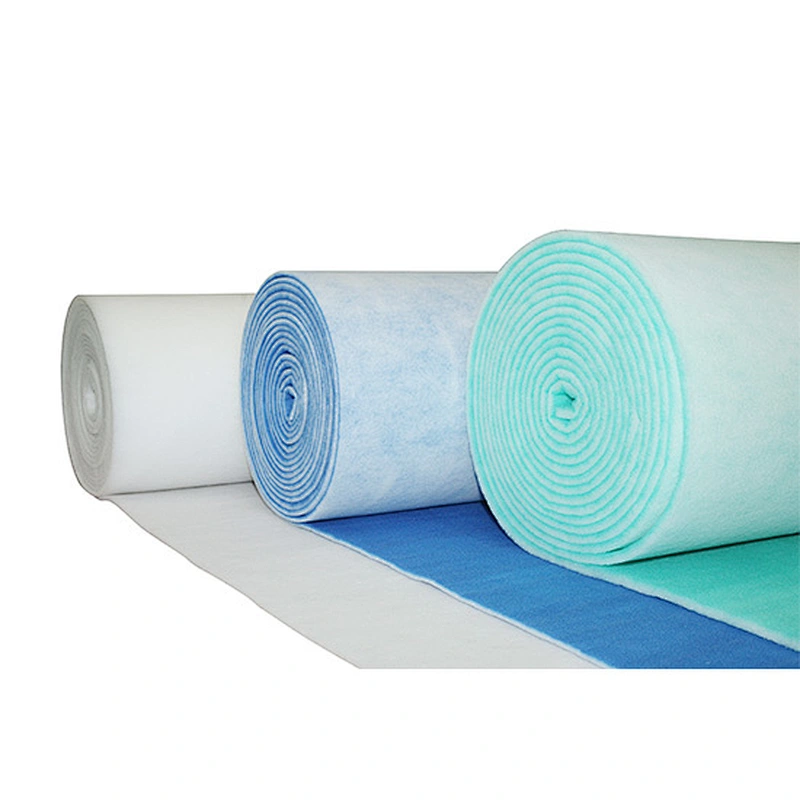

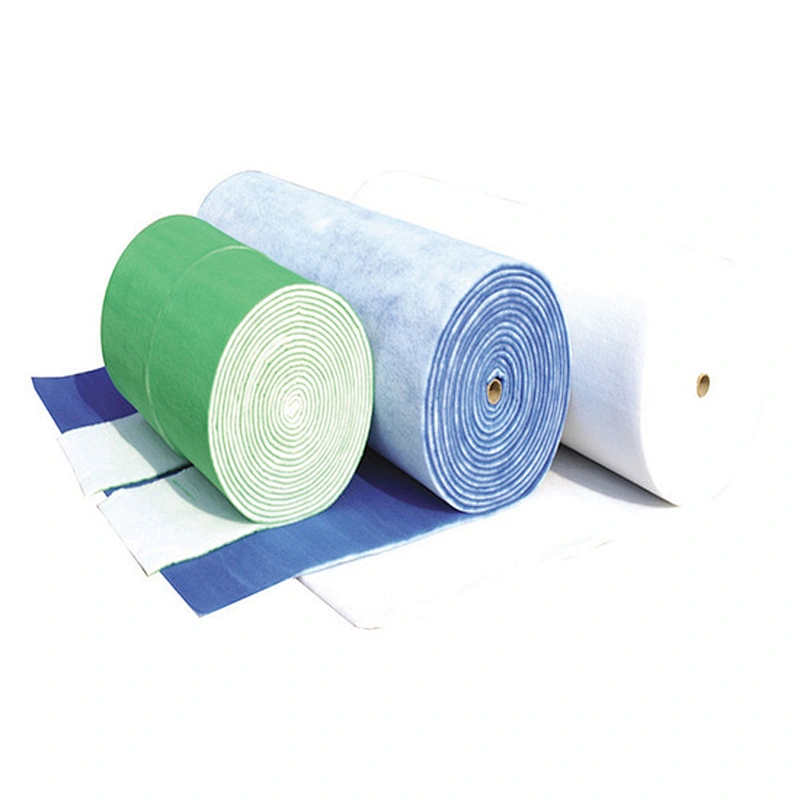

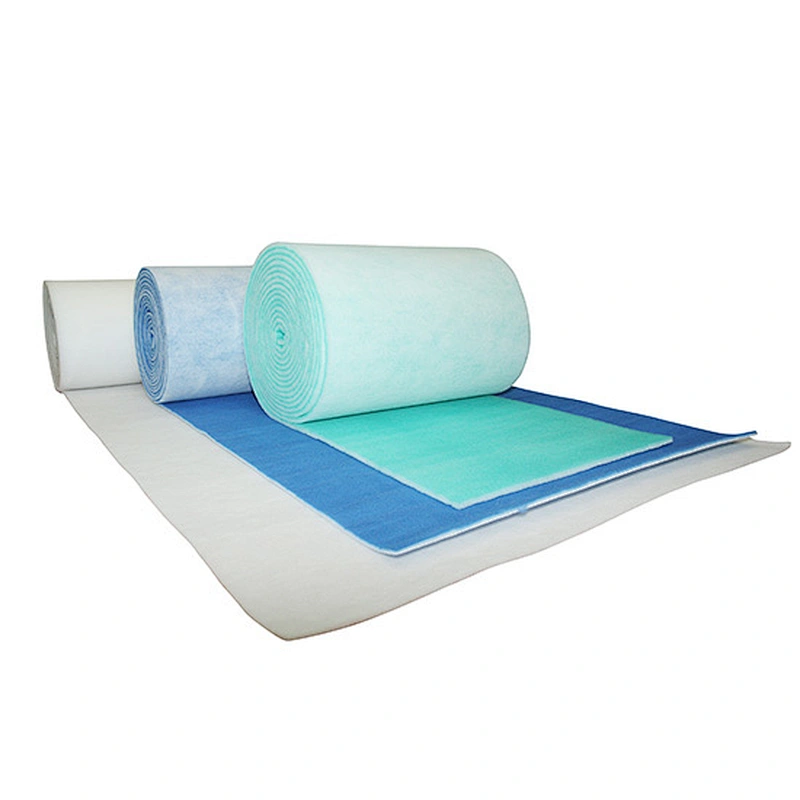

Unwashable Pre-filter,Pre-filter rolls for spray booth,G2 G3 G4 Pre-filter media
Speciality of Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media
SHW-20/G2; SHW-30/G3; SHW-40/G4
SHW-60/F5, consisted of special organic synthetic fiber, is a kind of high-density pocket filter.
It’s designed for prefiltration or coarse filtration in the inlet of general ventilation and air conditioning system.
Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media is processed by high-performance synthetic fiber in gradual technology.
Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media has Large dust holding capacity and low initial resistance, economical and practical
Conforming to European DIN53438-F1 and the American UL900-Class2
Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media can Be workable many times after washing the dust collected
Temperature resistance of Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media: 100℃ Instantaneous temperature of Unwashable Pre-filter,Pre-filter rolls for spray booth,G2 G3 G4 Pre-filter media: 120℃
Unwashable Pre-filter/Pre-filter rolls for spray booth/G2 G3 G4 Pre-filter media :Be widely used in pleated and pocket filters
| 类型 Type | 过滤级别 Filter Class | 平均 计重效率 Average Arrestance | 初始效率 [比色法] Initial Efficiency | 测试风速 NominalVelocity (m/s) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) | 终阻力 Final Resistance (Pa) | 容尘量 Dust Holding Capacity (g/m2 ) | 厚度 Thickness (mm) | 标准尺寸 Sizes |
| SHW-20 | G2 | 75% | <20% | 2.0 m/s | 7200 | 18 | 150 | 400 | 10 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| SHW-30 | G3 | 86% | <20% | 1.5 m/s | 5400 | 20 | 250 | 500 | 15 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| SHW-40 | G4 | 91% | <20% | 1.5 m/s | 5400 | 27 | 250 | 600 | 20 | 1.0*20 M |
| 2.0*20 M | ||||||||||
| SHW-60 | F5 | 96% | <22% | 0.25 m/s | 900 | 45 | 450 | 380 | 12 | 1.0*20 M |
| 2.0*20 M |
