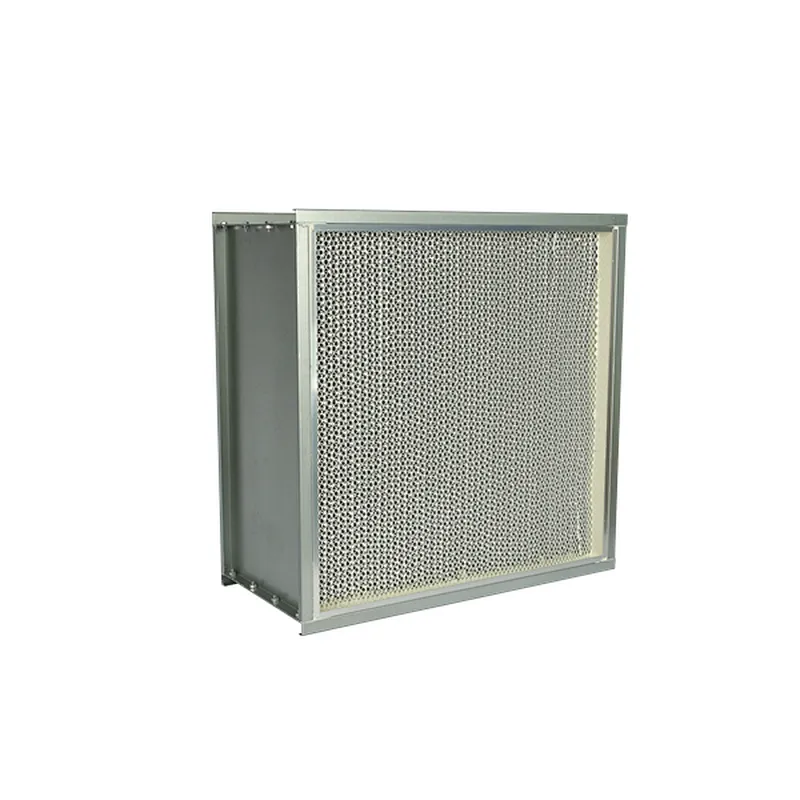

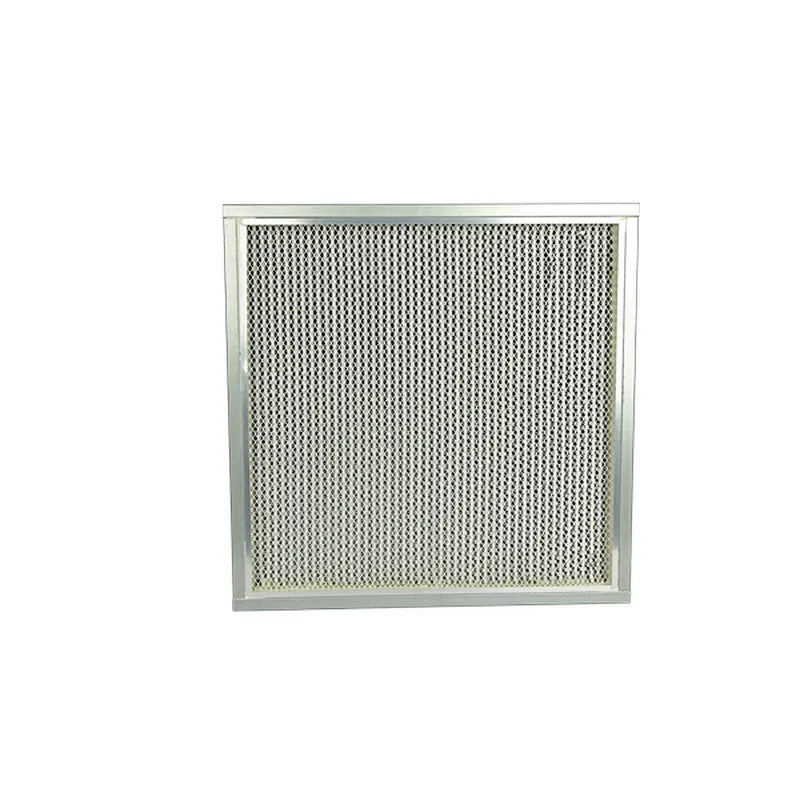

Industry use high efficiency H13 HEPA air filter custom hepa filter with separator air purifier hepa filter
Common Applications: Industry use high efficiency H13 HEPA air filter custom hepa filter with separator air purifier hepa filter is widely used in the end filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.
Industry use high efficiency H13 HEPA air filter custom hepa filter with separator air purifier hepa filter

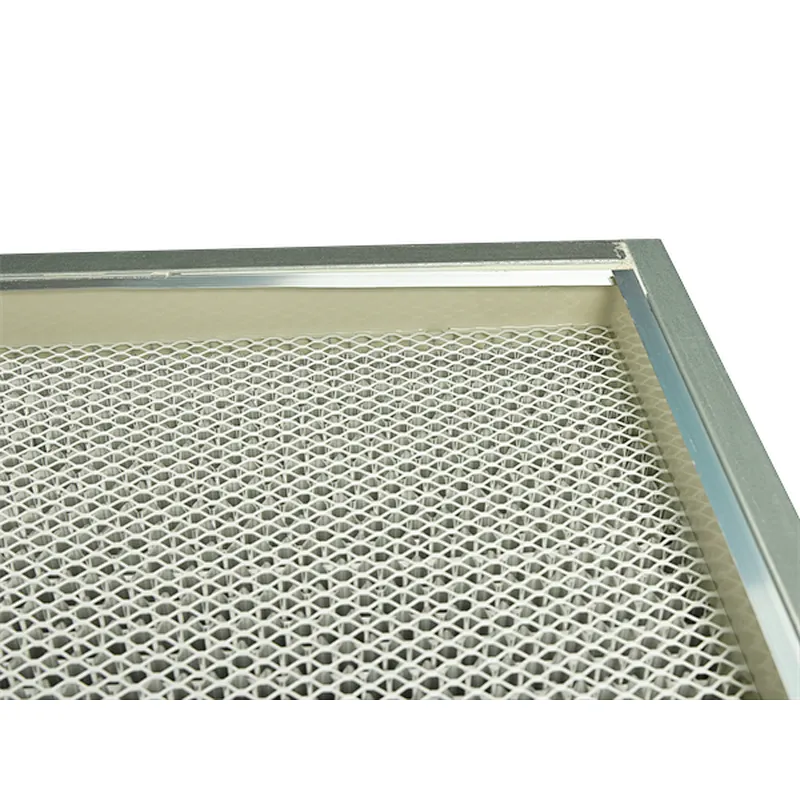

Features: Adopting the superfine fiberglass filter paper as the media, separated by folded glue paperboard, aluminum foil, sealed by the new polyurethane sealant. Low pressure loss, high efficiency, light weight, Industry use high efficiency H13 HEPA air filter custom hepa filter with separator air purifier hepa filter is tested precisely one by one.
Filter Media: fiberglass paper
Frame: aluminum alloy, galvanized, stainless steel, wooden frame
Specifications:
Industry use high efficiency H13 HEPA air filter custom hepa filter with separator air purifier hepa filter
| 类型 Type | 尺寸 Dimensions (mm) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial resistance (Pa) | |||||
| F7 | F8 | H10 | H11 | H13 | H14 | |||
| SHW-HY | 320*320*150 | 300 | 60 | 70 | 110 | 150 | 200 | 250 |
| 484*484*150 | 700 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 610*610*150 | 1000 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 762*610*150 | 1250 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 320*320*220 | 400 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 484*484*220 | 1000 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 630*630*220 | 1500 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 1260*630*220 | 3000 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 610*610*292 | 2000 | 60 | 70 | 110 | 150 | 200 | 250 | |
| 610*1220*292 | 3000 | 60 | 70 | 110 | 150 | 200 | 250 | |
