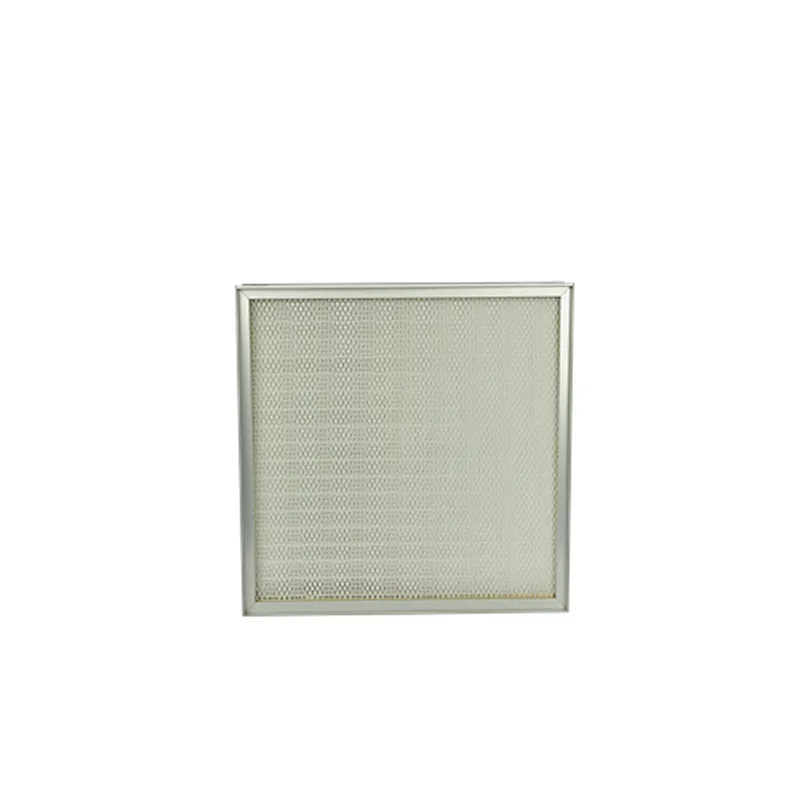

H13 H14 H15 Mini-pleat HEPA filter
Common Applications of H13 H14 H15 Mini-pleat HEPA filter: H13 H14 H15 Mini-pleat HEPA filter is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.H13 H14 H15 Mini-pleat HEPA filter
Features of H13 H14 H15 Mini-pleat HEPA filter: Adopting the superfine fiberglass paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by the new polyurethane sealant, aluminum alloy frame with plastic-coated protection nets in the outlet and inlet side to protect filter paper. Low pressure loss, high efficiency, light weight, it is tested precisely one by one.
Filter Media of H13 H14 H15 Mini-pleat HEPA filter: fiberglass paper, PP paper;
Frame of H13 H14 H15 Mini-pleat HEPA filter: aluminum alloy, galvanized, stainless steel
specification of H13 H14 H15 Mini-pleat HEPA filter:

类型 Type	尺寸 Dimensions (mm)	额定风量 Rated airflow (m3/h)	初阻力 Initial resistance (Pa)
			H0	H11	H13	H14	U15
SHW-HW	610*305*69	300	75	85	115	120	145
	610*610*69	550	75	85	115	120	145
	570*570*69	500	75	85	115	120	145
	1170*570*69	1000	75	85	115	120	145
	1170*1170*69	2000	75	85	115	120	145
	610*305*90	300	70	80	110	115	140
	610*610*90	550	70	80	110	115	140
	570*570*90	500	70	80	110	115	140
	1170*570*90	1000	70	80	110	115	140
	1170*1170*90	2000	70	80	110	115	140
	610*305*120	300	65	75	105	110	135
	610*610*120	550	65	75	105	110	135
	570*570*120	500	65	75	105	110	135
	1170*570*120	1000	65	75	105	110	135
	1170*1170*120	2000	65	75	105	110	135
	610*610*150	550	60	70	100	105	130
	1170*570*150	1000	60	70	100	105	130
	610*610*220	550	55	65	110	100	125
	1170*570*220	1000	55	65	110	100	125
	610*610*295	550	50	60	110	90	120
	1170*570*295	1000	50	60	110	90	120
