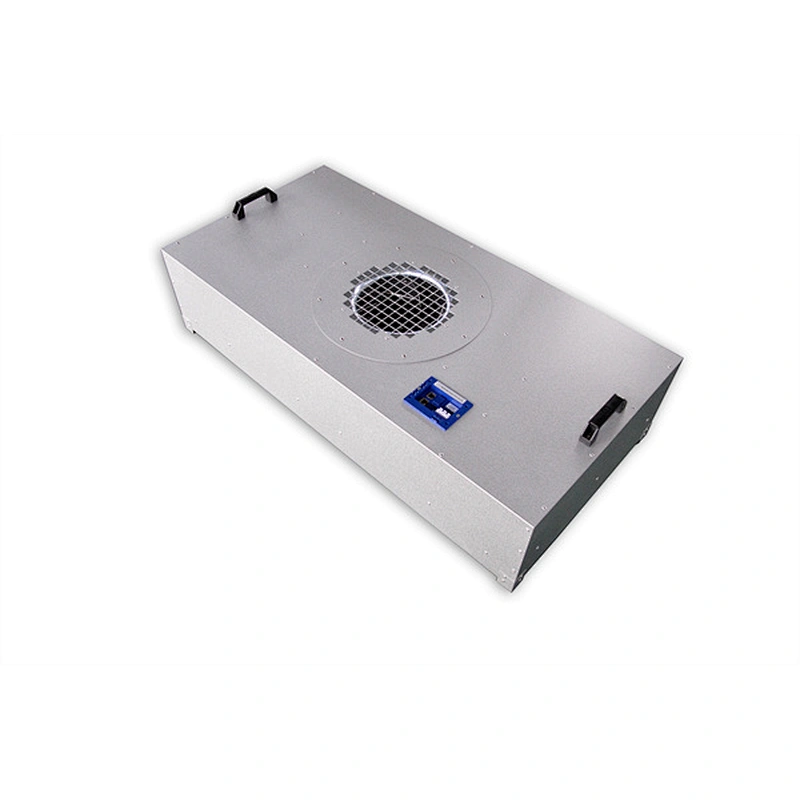

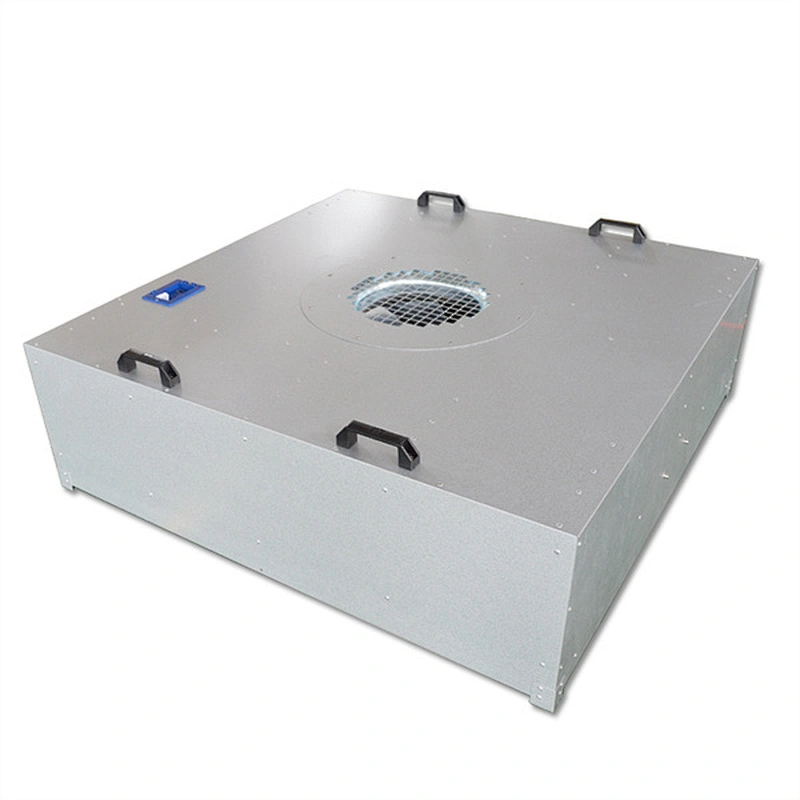

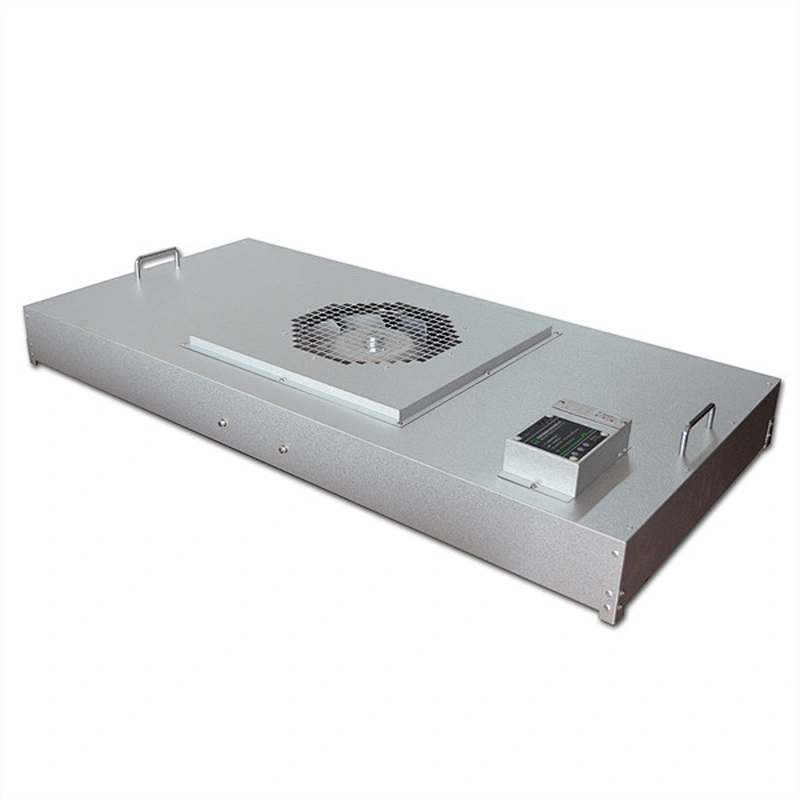

Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit
Production Introduction of  Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit
Features of Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit : 1. Multi-speed adjustment, multi-speed wind speed design, maintenance-free, low vibration and low noise;
2. Multiple connection control: all units were tested according to the international standard ISO14644-1, use the dust particle counter to scan and test one by one to ensure the quality before leaving the factory, thousands of units can be connected and controlled, reducing the incidence of failure;
3. Low calorific value, high energy efficiency ratio , and the calorific value is very small.
4. The wind speed is large and can be used in series. The DC fan filter unit (DC FFU) is a ceiling-mounted unit with an internal fan. Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit is used in turbulent and laminar flow clean rooms. Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit has the characteristics of modular connection and use. The average wind speed reaches 0.45m/s±20%.

Specification of Professional Manufacturing Air Hepa Fan Filters FFU Filter Unit

类型Type	FFU-2X2		FFU-2X4	FFU-4X4
外型尺寸 Dimensions (mm)	W575xL575xH250mm		W1175xL575xH250mm	W1175xL1175xH250mm
额定风量 Rated airflow (m3/h)	500m³/h		1000m³/h	2000m³/h
效率 Efficiency	99.995%@0.3μm(H14)
高效过滤器 HEPA filter	W570xL570xH69mm		W1170xL570xH69mm	W1170xL1170xH69mm
噪音 Noise	声压级（滤网下1.5m处≤56dB(A）(单台@0.45m/m/sOPa) sound pressure level（1.5m below the filter screen≤56dB(A）(each set@0.45m/m/sOPa)
箱体材质 Box material	镀铝锌galvanized aluminum
电源 Power supply	AC 1Ph,200~240V  50/60HZ
电机类型 Motor type	直流电机continuous current dynamo
功率 Power	50W	60W		160W
