Laminar Flow Ceiling For Hospital Operating Room

large Volume Laminar flow,Laminar Flow Ceiling For Hospital Operating Room,Hospital Operation Clean room Laminar Air Flow Ceiling

Description of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling：Laminar air supply ceiling is an essential air supply device for hospital clean operating rooms. the function of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling is to ensure the air cleanliness and airflow uniformity in the operating room, especially the operating area, and reduce the risk of surgical infection.
Product Features of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling:
1.Modular design of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling makes transportation more convenient and assembly more flexible.
2.large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling have High reliability, using special high-efficiency filter for operating room, good filtration and purification effect, and purified airflow. After the double-layer uniform flow film, the air supply air flow is uniform.
3.The maintenance of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling is convenient, the installation frame of the flow equalizing film is fixed by the circlip, which is more convenient for maintenance.

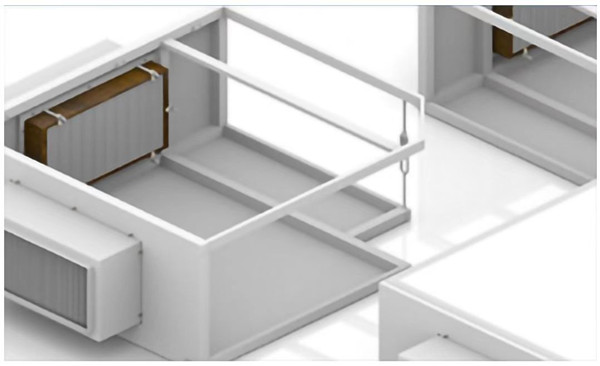

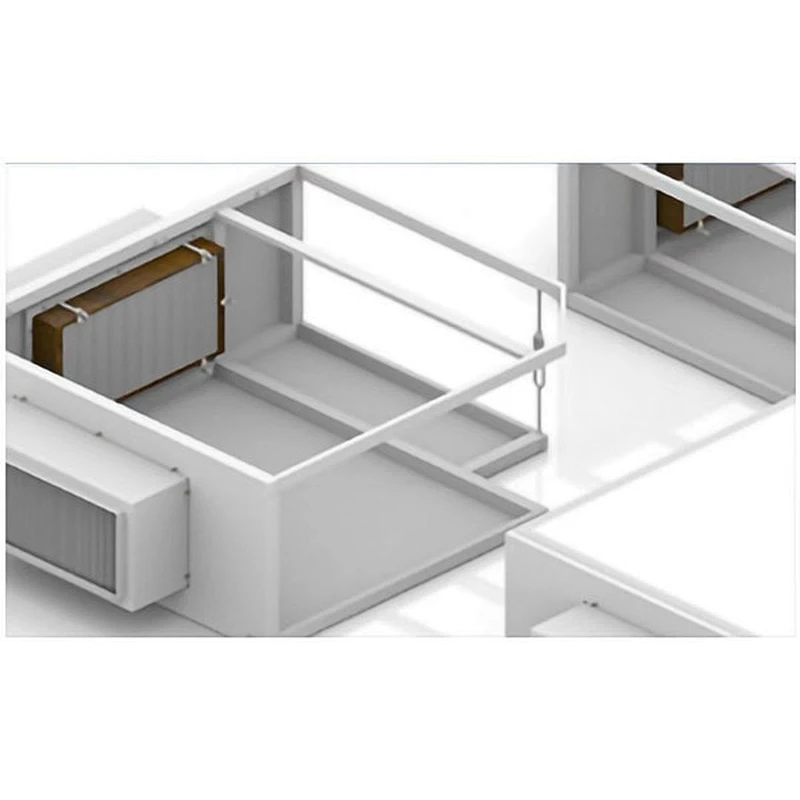

Schematic of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling :

1. box
2.filter mounting frame
3.High efficiency filter
4.even flow film
5.Shadowless lamp baffle

Specifictaion of large Volume Laminar flow/Laminar Flow Ceiling For Hospital Operating Room/Hospital Operation Clean room Laminar Air Flow Ceiling

类型Type	SHW-2624	SHW-2618	SHW-2614
箱体颈尺 Box neck ruler	26002400500	26001800500	26001400500
天花开孔 Smallpox opening	2610*2410	2610*1810	2610*1410
送风风速或换气次数 Supply air speed or number of air changes	0.2-0.25m/s	24次/小时 24 times/h	18次/小时 18 times/h
额定风量 Rated airflow (m3/h)	7500	4000	3000
过滤器规格数量 Number of filter specifications	610305295=8个610305295=8 pieces	610305295=4个 610305295=4 pieces	610305295=3个 610305295=3 pieces
过滤器效率 Filter efficiency	99.999%@0.5μm
适用场合Applications	[I]级手术室（特别洁净手术室） Level I operating room (special clean operating room)	[II]级手术室（标准洁净手术室） Level II operating room (standard clean operating room)	[III]级手术室（一般洁净手术室） Level III operating room (general clean operating room)
