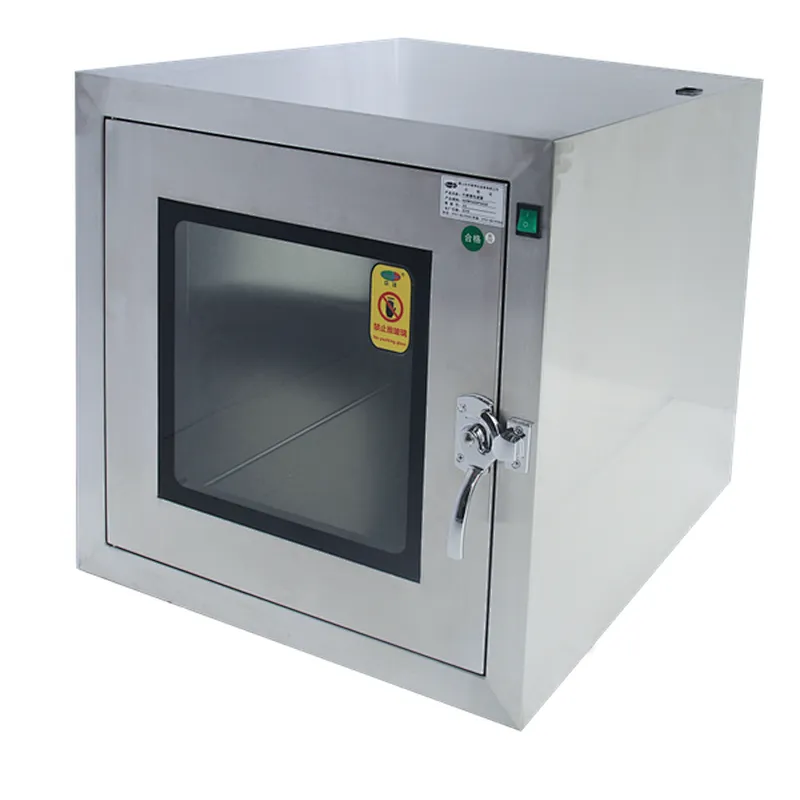

Cleanroom Pass Box for Pharmaceutical Factory/Laboratory
Features of Cleanroom Pass Box for Pharmaceutical Factory/Laboratory:
1. Cleanroom Pass Box for Pharmaceutical Factory/Laboratory has a wide range of functions. The ordinary transfer window is an auxiliary equipment for the clean room. It is mainly used for the transfer of small items between clean rooms and non-clean rooms, to reduce the number of door openings. The contamination of the objective presence of the clean room or the clean area is minimized.
2. Cleanroom Pass Box for Pharmaceutical Factory/Laboratory,The core value can act as an air lock to prevent high pressure leakage in the clean room; reduce the time for operators to walk around, thereby preventing dust from entering and maintaining the clean room;
3.Cleanroom Pass Box for Pharmaceutical Factory/Laboratory, Selected materials, the working area is made of sanded stainless steel, which is smooth; the surface of the box can be made of cold plate spraying or all stainless steel;
4. Cleanroom Pass Box for Pharmaceutical Factory/Laboratory,Mechanical and electronic interlocking, mechanical interlocking and electronic interlocking devices prevent the doors of both sides from being opened at the same time;
5. Cleanroom Pass Box for Pharmaceutical Factory/Laboratory,Good air tightness, the pass box is equipped with special sealing strip or sealant to ensure air tightness.
| 类型 Type | 机械互锁 Mechanical Locking | 电子互锁 Electronic Locking |
| 外尺寸 Internal Dimension | W600*H600*D600 | W600*H600*D600 |
| 内尺寸 External Dimension | W486*H486*D530 | W486*H486*D530 |
| voltage | ------- | 220V,50HZ |
| 外箱材料 Outside Material | 不锈钢/环保板喷涂 Stainless/Environmental protection board spraying | 不锈钢/环保板喷涂 Stainless/Environmental protection board spraying |
| 内壁材料 Inside Material | 不锈钢 Stainless | 不锈钢 Stainless |
| 外观颜色 Exterior color | 不锈钢/喷涂颜色 Stainless/spray color | 不锈钢/喷涂颜色 Stainless/spray color |
