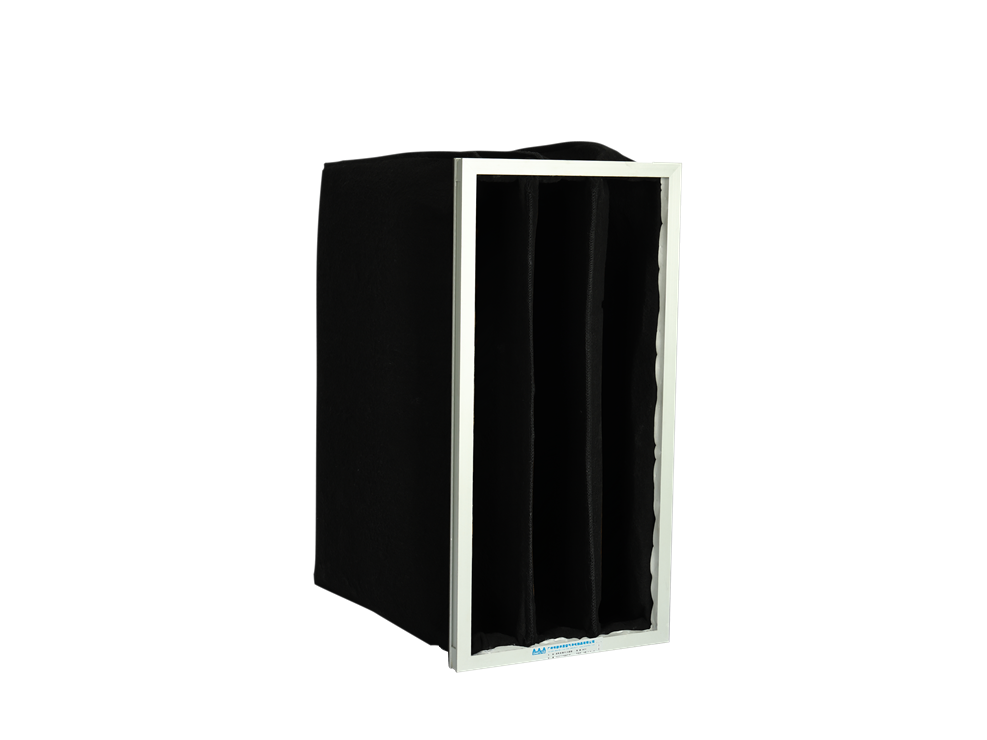

Activated Carbon Pre-filter,Activated Carbon bag filter,Activated Carbon Pocket Air Filter
Speciality of Activated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter:
Common Applications ofActivated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter: Suitable for office buildings, airports, hospitals and other air-conditioning ventilation systems to improve indoor air quality
Features of Activated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter: : High iodine value activated carbon media with fine surface adsorption ability, it can get rid of the odor, sulfur dioxide and other volatile organic pollutants in the air effectively.

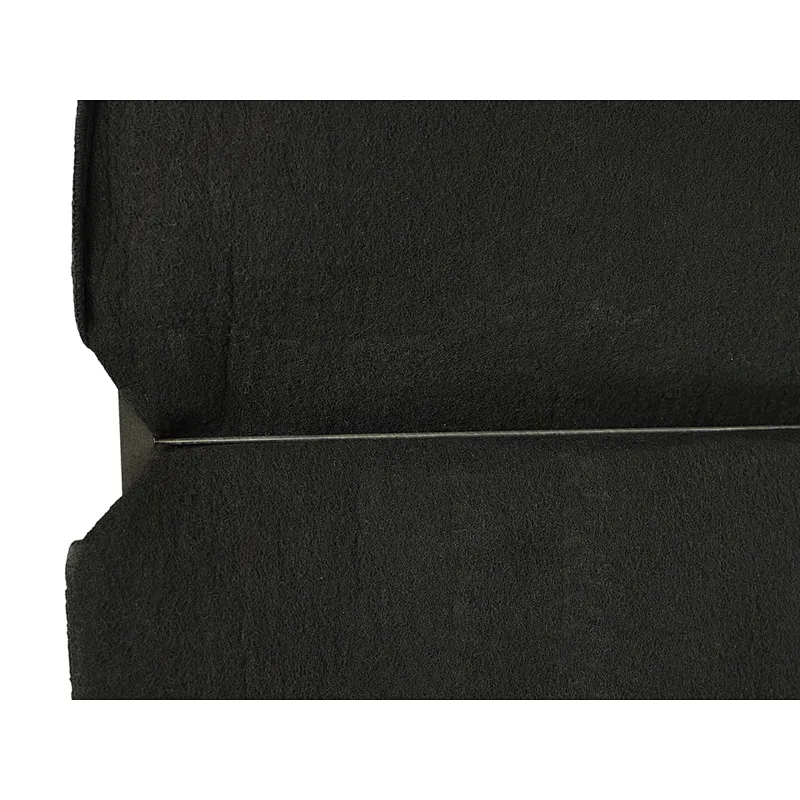

Filter Media of of Activated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter:: Composed of high iodine value activated carbon fiber and filter media

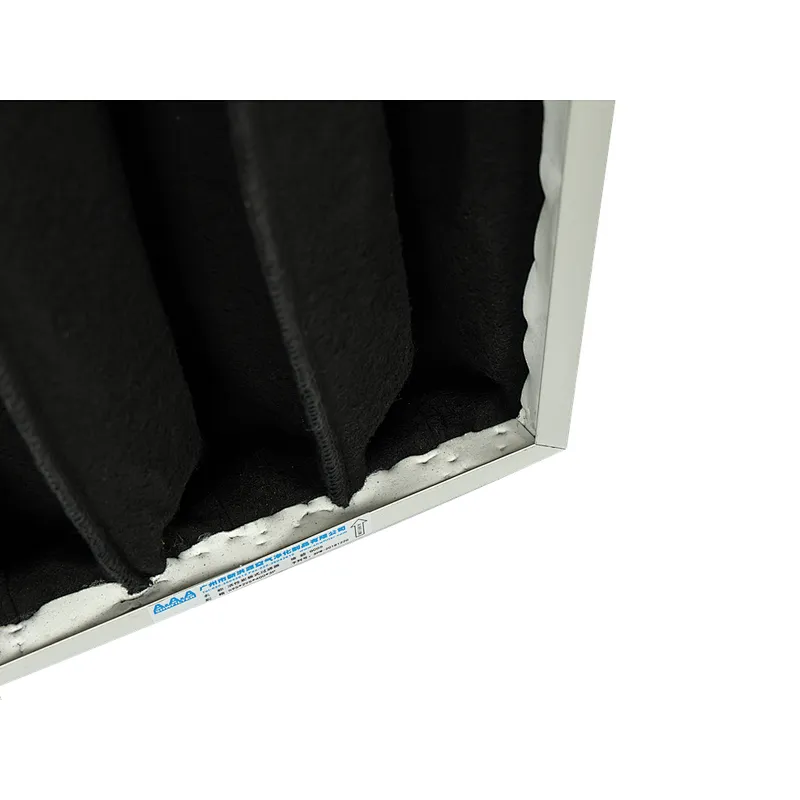

Frameof Activated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter:: Aluminum alloy, Color-coated sheet, Galvanized sheet, Stainless steel, Polypropylene
Specification of of Activated Carbon Pre-filter/Activated Carbon bag filter/Activated Carbon Pocket Air Filter:
| 类型 Type | 效率等级 Efficiency EN779 | 尺寸 Dimensions (mm) | 袋数 Pockets (Pcs) | 过滤面积 Filter Area (㎡) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) |
| SHW-TD | G3 | 595*595*600 | 6 | 4.64 | 3400 | 50 |
| 495*595*600 | 5 | 3.87 | 2800 | 50 | ||
| 295*595*600 | 3 | 2.32 | 1700 | 50 | ||
| G4 | 595*595*600 | 6 | 4.64 | 3400 | 55 | |
| 495*595*600 | 5 | 3.87 | 2800 | 55 | ||
| 295*595*600 | 3 | 2.32 | 1700 | 55 | ||
| M5 | 595*595*600 | 6 | 4.64 | 3400 | 60 | |
| 495*595*600 | 5 | 3.87 | 2800 | 60 | ||
| 295*595*600 | 3 | 2.32 | 1700 | 60 |
