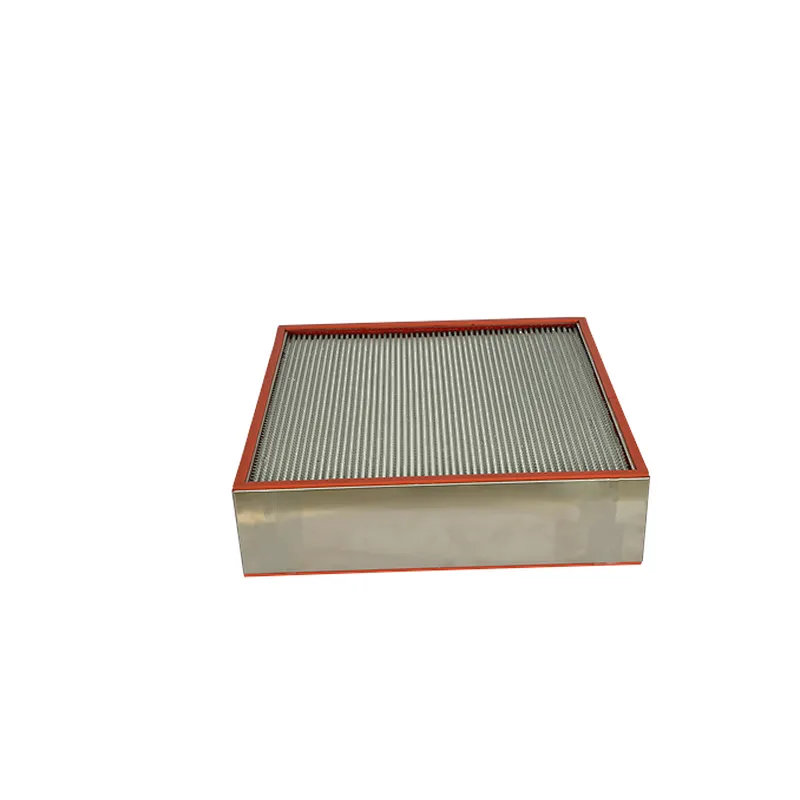

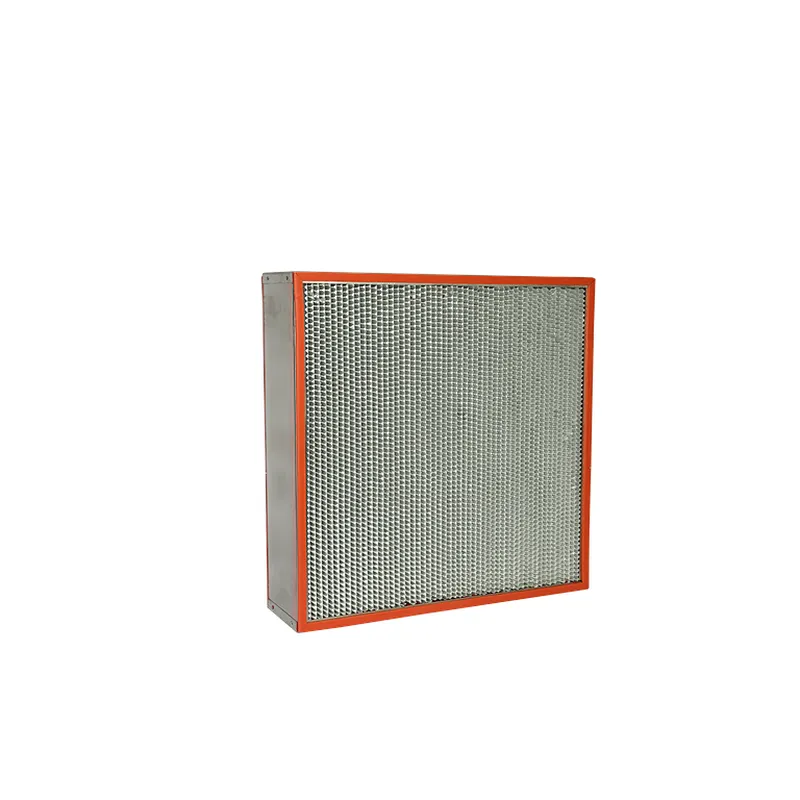

Clean Room Heat Resistance HEPA Filter for HVAC ventilation system
Speciality of  for Clean Room Heat Resistance HEPA Filter for HVAC ventilation system:
Common Applications of Clean Room Heat Resistance HEPA Filter for HVAC ventilation system: Mainly used in hot air filtration of automobile manufacturing and spraying; food, pharmaceutical and other production links requiring high temperature air purification for equipment and systems or ultra-clean ovens for drying.

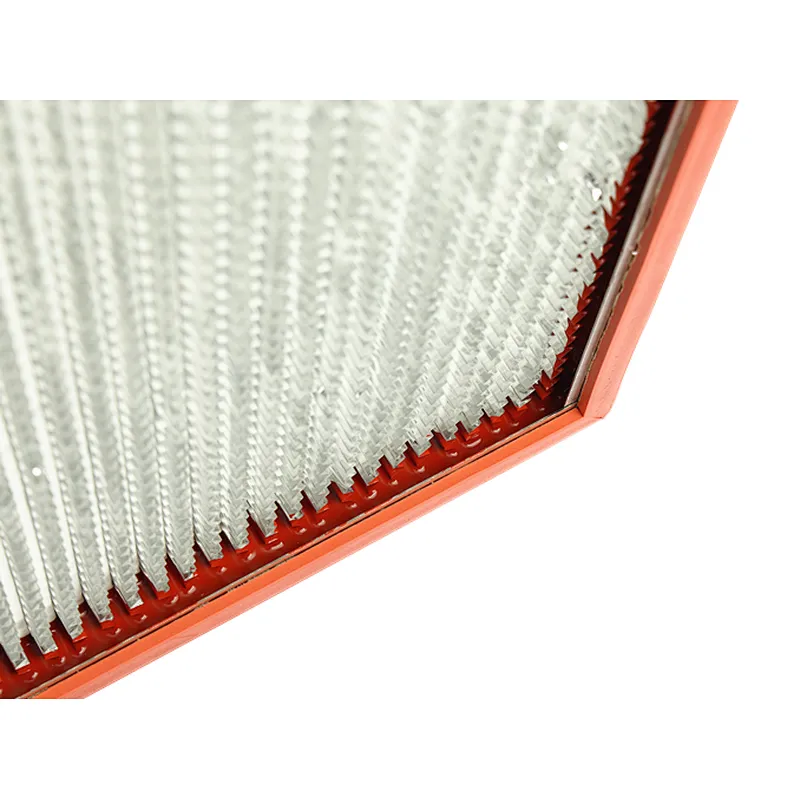

Features: deep-pleat structure, adopting heat resistant glass fiber or ultra-fine glass fiber filter paper, heat resistant sealant, special aluminum separator, special equipment for folding, stainless steel frame, temperature resistance 250 ℃.
Filter Media of Clean Room Heat Resistance HEPA Filter for HVAC ventilation system: glass fiber filter paper
Frame of Clean Room Heat Resistance HEPA Filter for HVAC ventilation system: galvanized, stainless steel

Specification：

类型 Type	尺寸 Dimensions (mm)	额定风量 Rated Airflow (m3/h)	初阻力 Initial Resistance （Pa）
			F7	F8	F9	H13	H14
SHW-HG	305*610*69	400	140	150	160	250	280
	610*610*69	800	140	150	160	250	280
	305*610*150	850	140	150	160	250	280
	610*610*150	1700	140	150	160	250	280
	305*610*220	1080	140	150	160	250	280
	610*610*220	2160	140	150	160	250	280
	305*610*292	1120	140	150	160	250	280
	610*610*292	2400	140	150	160	250	280
