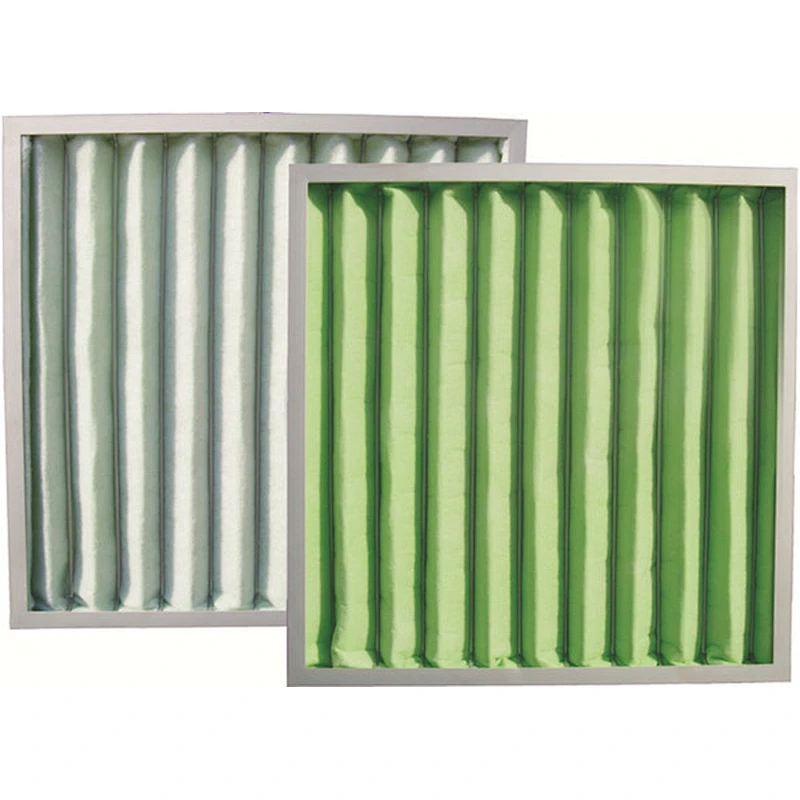

Washable panel Pre-filter G3 G4 for air conditional system
Speciality of  Washable panel Pre-filter G3 G4 for air conditional system:
Common Applications of  : It is mainly used as the pre-filtration for HEPA filter and the ventilation system of the cleanroom for purification.
Features of Washable panel Pre-filter G3 G4 for air conditional system : low initial resistance, high airflow and large dust holding capacity
Filter Media of Washable panel Pre-filter G3 G4 for air conditional system  : Processed by high-quality synthetic fiber filter material in gradual technology, washable and reusable. Conforming to the European DIN53438-F1 and American UL900-Class2;
Frame : Aluminum alloy, color coated plate, galvanized, stainless steel, polypropylene

Specification

类型 Type	效率等级 Efficiency EN779	尺寸 Dimensions (mm)	额定风量 Rated Airflow (m3/h)	初阻力 Initial Resistance (Pa)
SHW-BC	G3	595*595*46	3400	85
		595*495*46	2800
		595*295*46	1700
	G4	595*595*46	3400	95
		595*495*46	2800
		595*295*46	1700
	M5	595*595*46	3400	105
		595*495*46	2800
		595*295*46	1700
