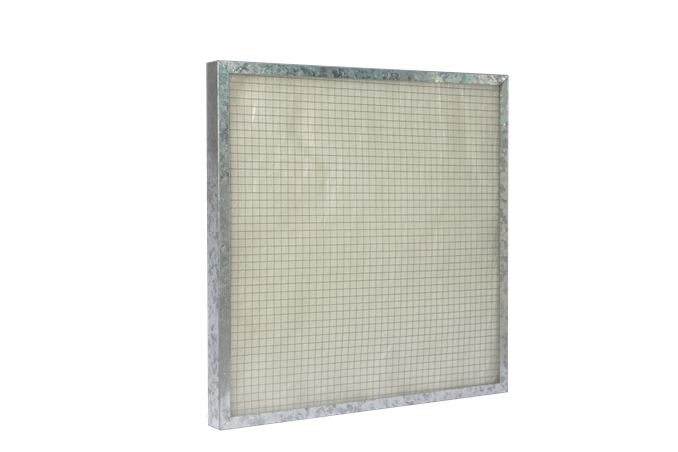

High Temperature Filberglass Filter,G3-G4 High Temperature Resistance filter,High Temperature Heat-Resistant 250-300T
Speciality of High Temperature Filberglass Filter/G3-G4 High Temperature Resistance filter/High Temperature Heat-Resistant 250-300T:
Common Applications of High Temperature Filberglass Filter/G3-G4 High Temperature Resistance filter/High Temperature Heat-Resistant 250-300T:It is used in hot-air high-temperature ovens in coating plants to filter tar, soot, dust and other particles generated in high-temperature ovens to prevent damage to the surface paint quality of items.

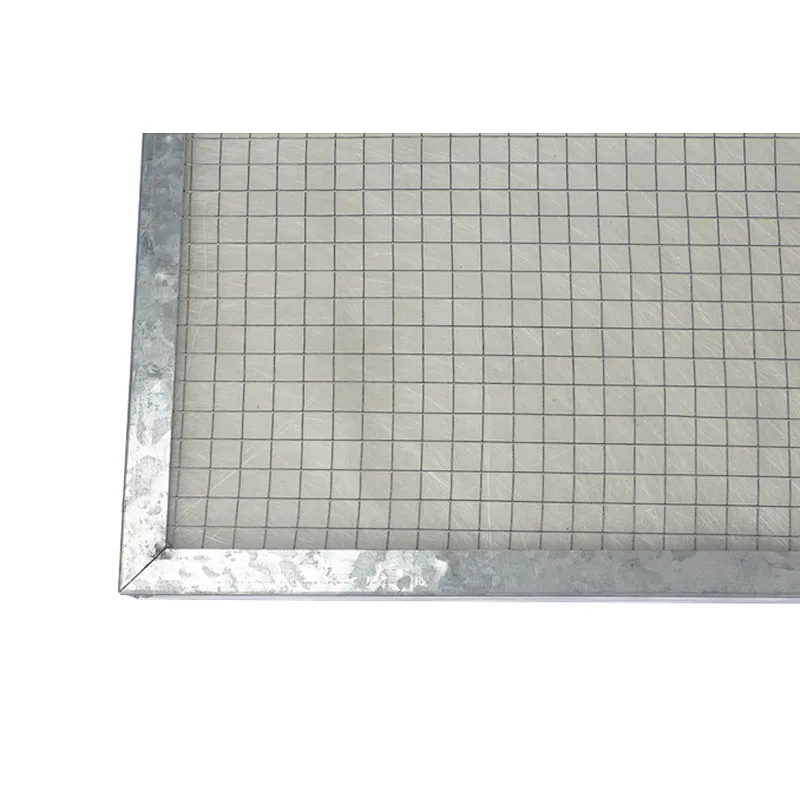

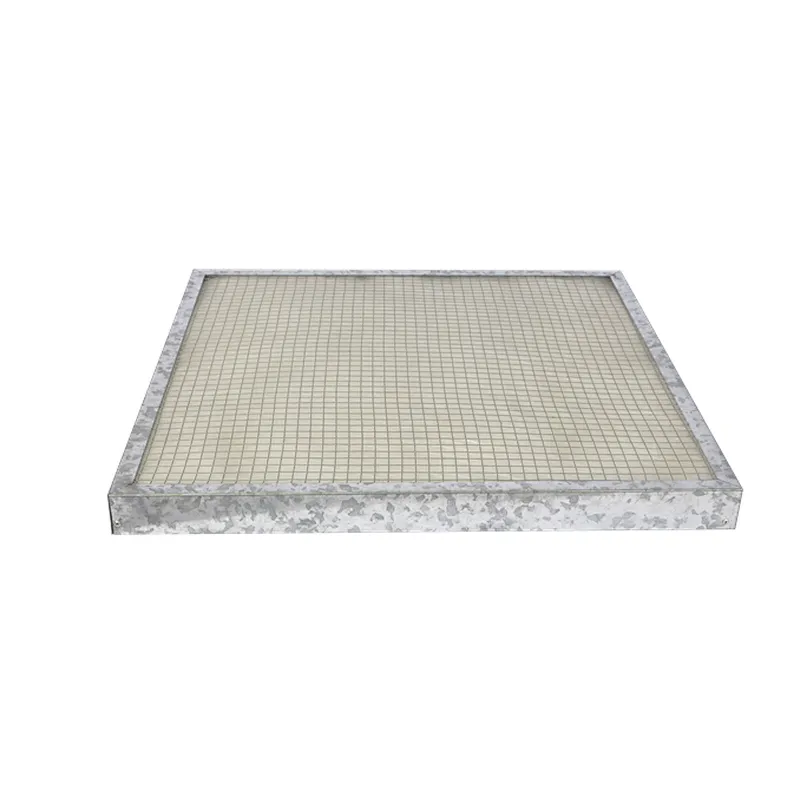

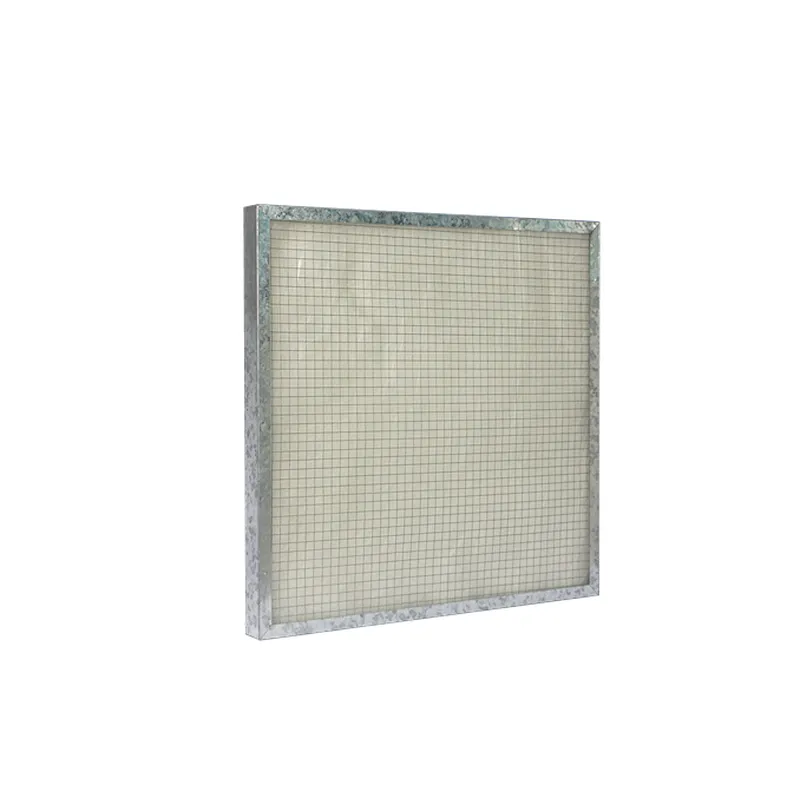

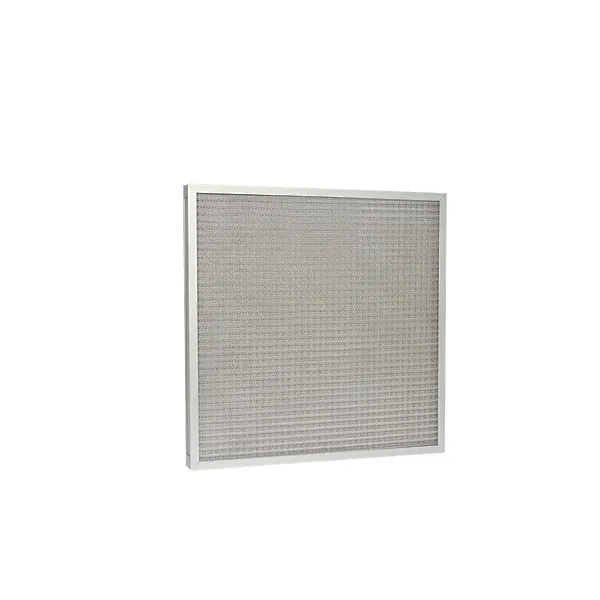

Featuresof High Temperature Filberglass Filter/G3-G4 High Temperature Resistance filter/High Temperature Heat-Resistant 250-300T:: The filter material is made of long glass fibers in non-woven way, fixed with aluminum expansion nets, not easy to deform and it can withstand 300 ° C high temperature with good chemical resistance.
Filter Media: glass fiber
Frame: galvanized, stainless steel
Specification
| 类型 Type | 效率等级 Efficiency EN779 | 尺寸 Dimensions (mm) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) | 耐温Temperature Resistance (℃) |
| SHW-HB | G3 | 500*500*25 | 1000 | 45 | 240 |
| G4 | 500*500*46 | 1000 | 55 | 300 |
