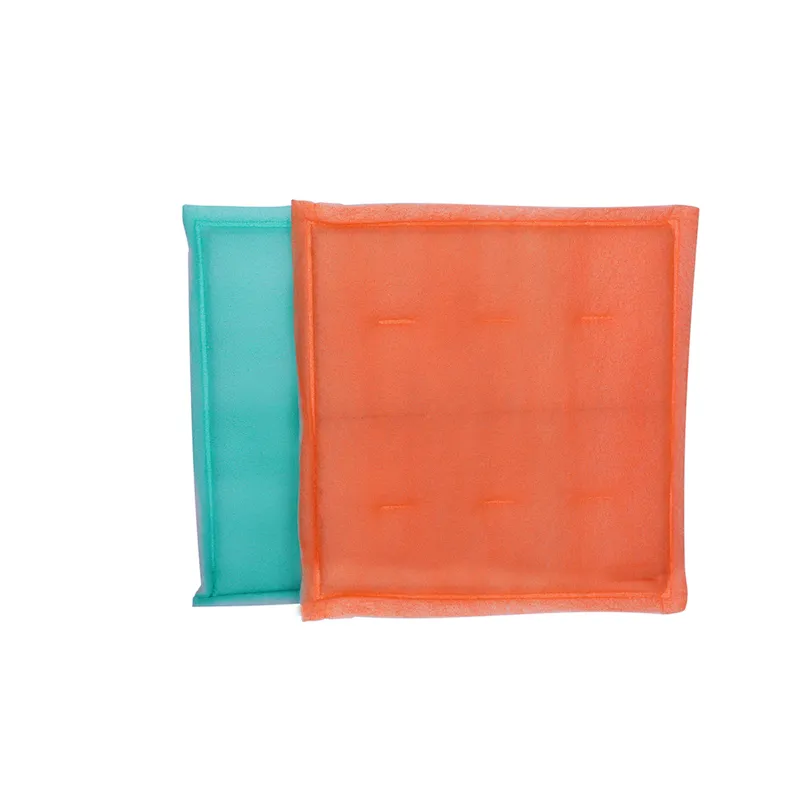

Customized Panel Filter,Panel Air filter,Panel Pre filter
Speciality of Customized Panel Filter,Panel Air filter,Panel Pre filter
Common Applications of Customized Panel Filter/Panel Air filter/Panel Pre filter: It helps improving indoor air quality, eliminating contaminants from HVAC environments, protecting valuable air conditioning equipment, and protecting employees from polluted air.

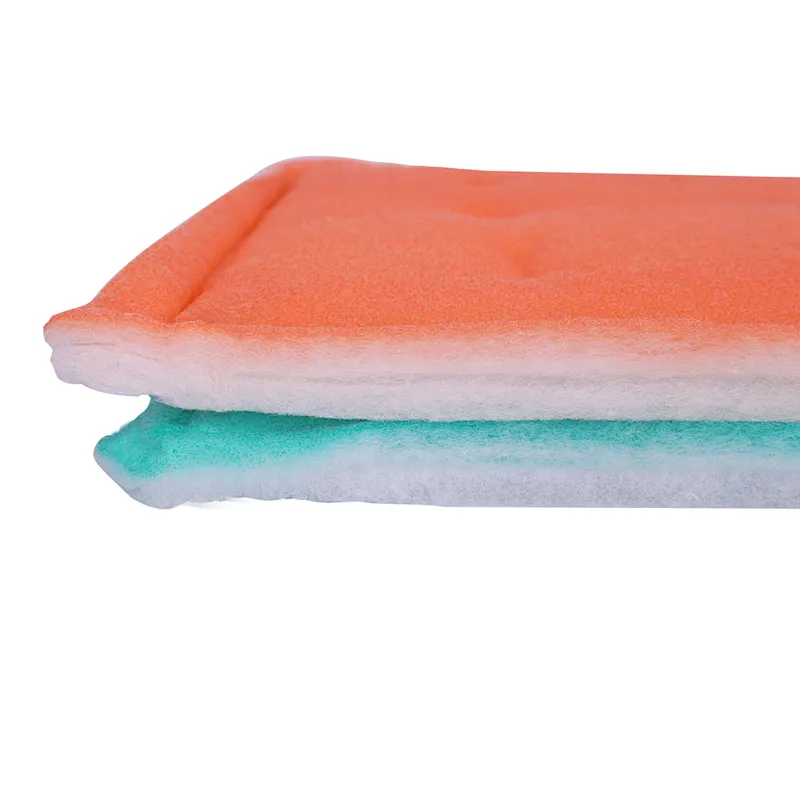

Features of Customized Panel Filter/Panel Air filter/Panel Pre filter: Composed of two layers dry polyester board and recyclable synthetic fiber, it is light and easy to install; It prolongs the service life of the precious secondary filter, prevents the air from detouring. And the automatic sealing design improved its efficiency performance; Strong internal mesh with heat-sealed design around the perimeter to ensure product durability and structural integrity;
Filter Media of Customized Panel Filter/Panel Air filter/Panel Pre filter: Processed by high-quality synthetic fiber filter material in gradual technology, conforming to the European DIN53438-F1 and American UL900-Class2;
| 类型 Type | 效率等级 Efficiency EN779 | 尺寸 Dimensions | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) | |
| (mm) | (inch) | ||||
| SHW-MB | G4 | 508*508*21 | 20*20*1 | 600 | 30 |
| 610*610*21 | 24*24*1 | 800 | 30 | ||
| 508*1170*21 | 20*46*1 | 1400 | 30 | ||
| 508*1220*21 | 20*48*1 | 1500 | 30 | ||
