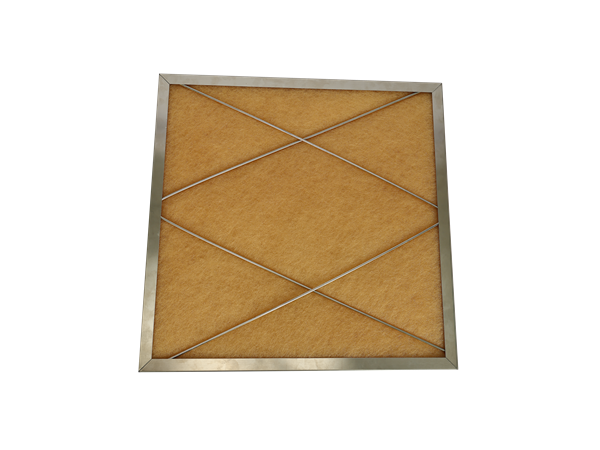

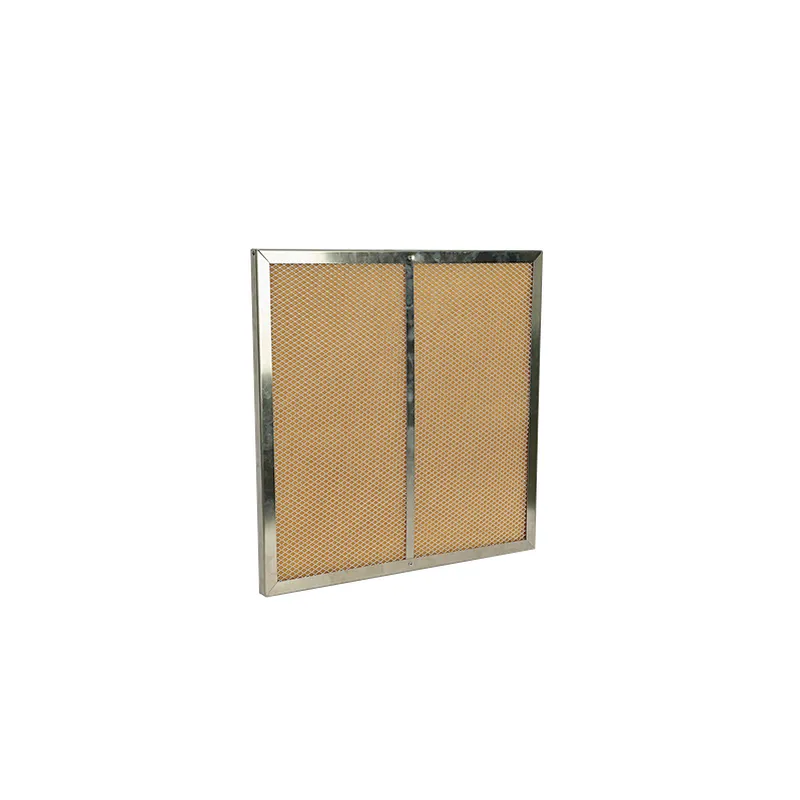

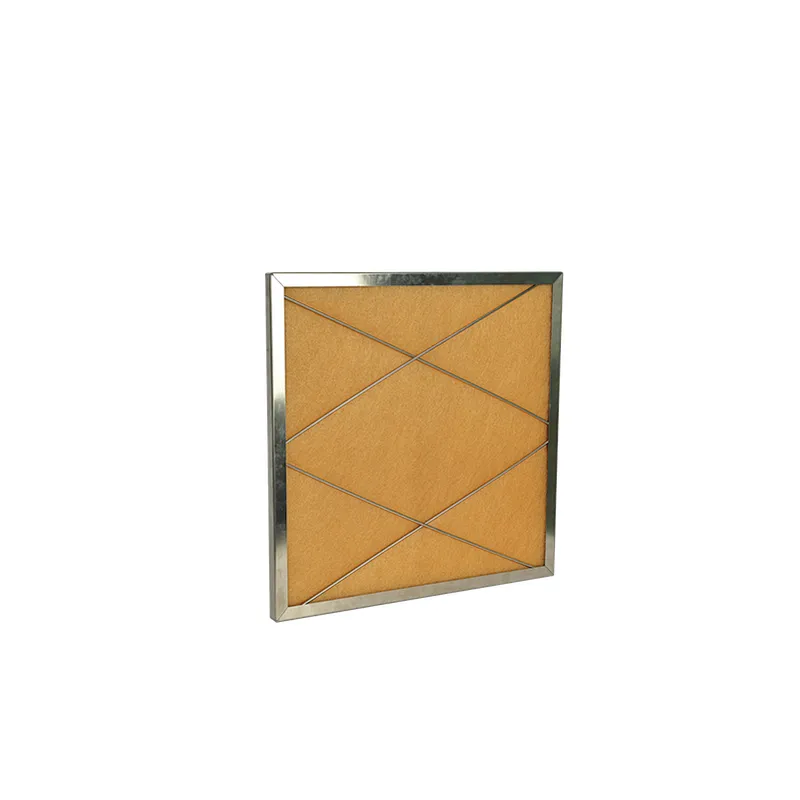

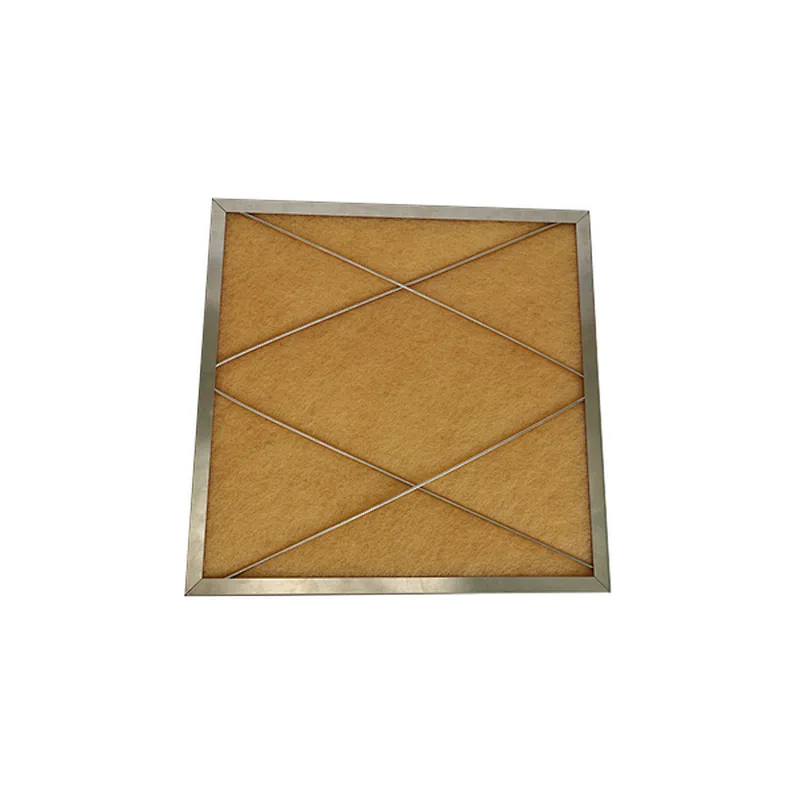

High temperature panel filter,Oven panel filter,Fine heat-resistance air filter
Speciality of High temperature panel filter/Oven panel filter/Fine heat-resistance air filter:
Common Applications of High temperature panel filter/Oven panel filter/Fine heat-resistance air filter: Mainly used in high-tech electronics, military aerospace coating field, filtering tar and soot generated in high temperature baking room;
Features: strong heat resistance, large air volume, low resistance;
Filter Media: Imported special organic synthetic fiber to eliminate the phenomenon of breakage and fiber loss of ordinary glass fiber.
Frame: galvanized, stainless steel
Specification of High temperature panel filter/Oven panel filter/Fine heat-resistance air filter
| 类型 Type | 效率等级 Efficiency EN779 | 尺寸 Dimensions (mm) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) | 耐温Temperature Resistance (℃) |
| SHW-HC | G4 | 500*500*21 | 1000 | 45 | 180 |
| G4 | 500*500*21 | 1000 | 45 | 240 | |
| G4 | 500*500*21 | 1000 | 45 | 300 |
