Speciality:

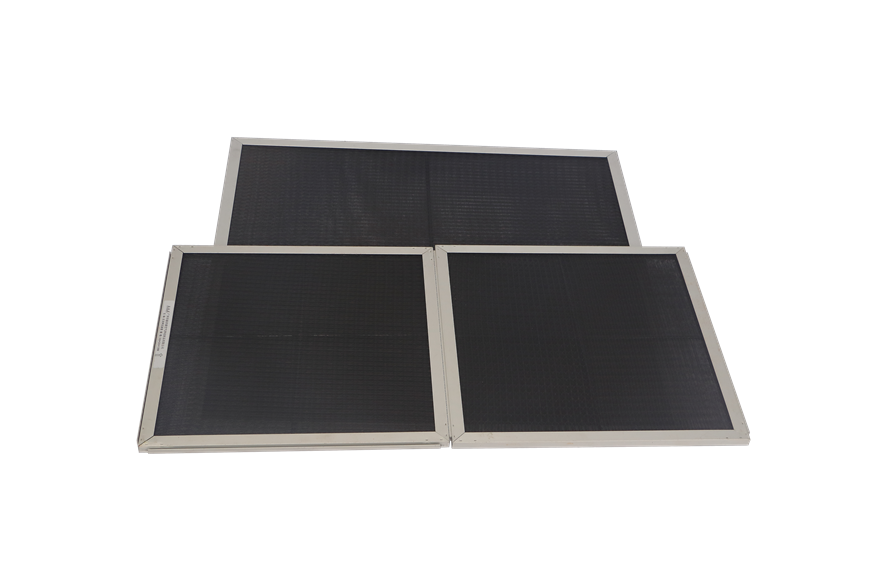

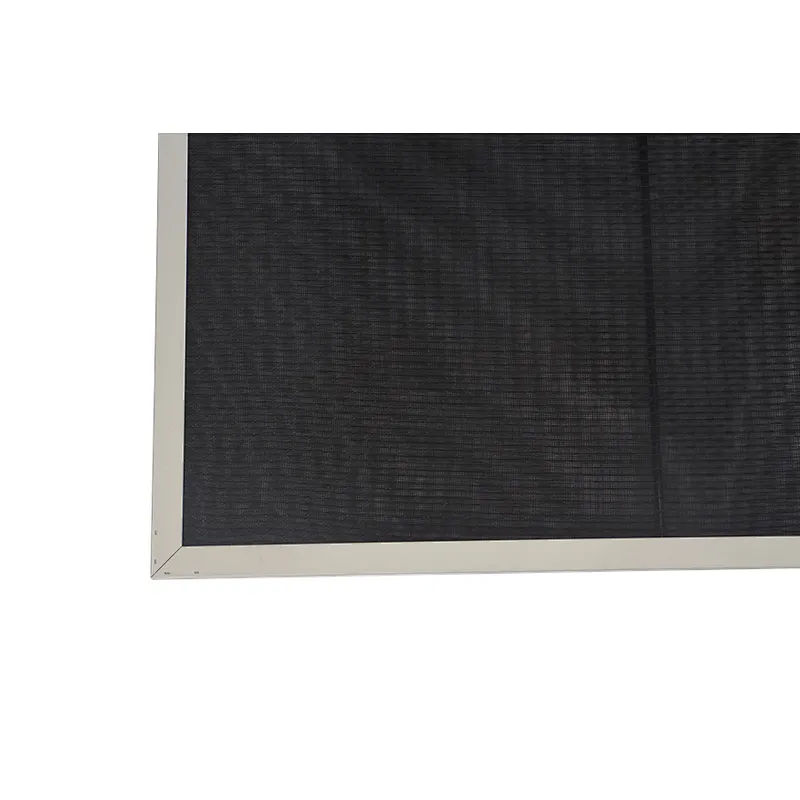

Common Applications: nylon mesh filter is widely used as the protective pre-filtration in central air conditioning system of household, commerce and industry.
Features: nylon mesh filter have high airflow, low resistance, long working life, economical and it can be used repeatedly.
Filter Media: nylon mesh filter is made by PP fiber textile black nylon net
Frame: aluminum alloy
Specification
| 类型 Type | 尺寸 Dimensions (mm) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) |
| SHW-NL | 595*595*8 | 3400 | 10 |
| 595*495*8 | 2800 | ||
| 595*295*8 | 1700 | ||
| 595*595*10 | 3400 | 12 | |
| 595*495*10 | 2800 | ||
| 595*295*10 | 1700 | ||
| 595*595*21 | 3400 | 15 | |
| 595*495*21 | 2800 | ||
| 595*295*21 | 1700 |
