Speciality:
Common Applications: metal mesh filter pre filter is using in ventilation system with acid and alkali resistance, high strength and high temperature resistance, and the filtration of metal filter in the wax spray room in the automobile assembly workshop;
Features: metal filter have low resistance, high airflow, and metal filter are washable and economical

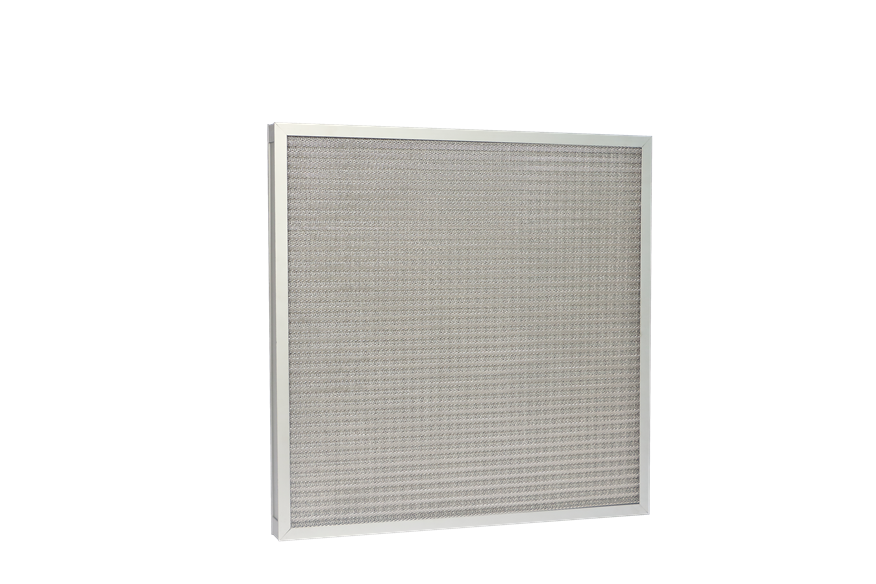

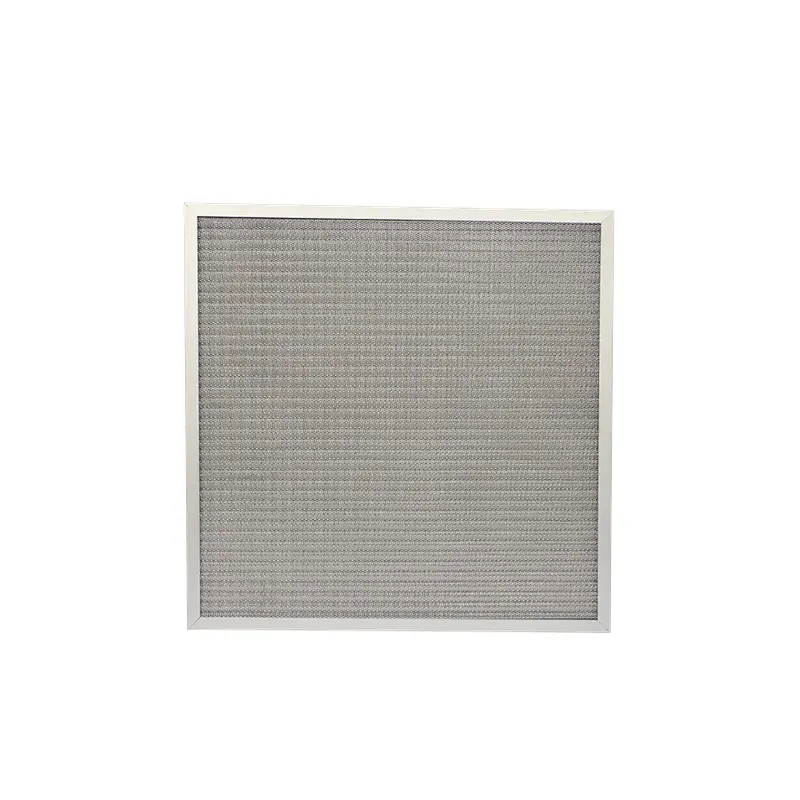

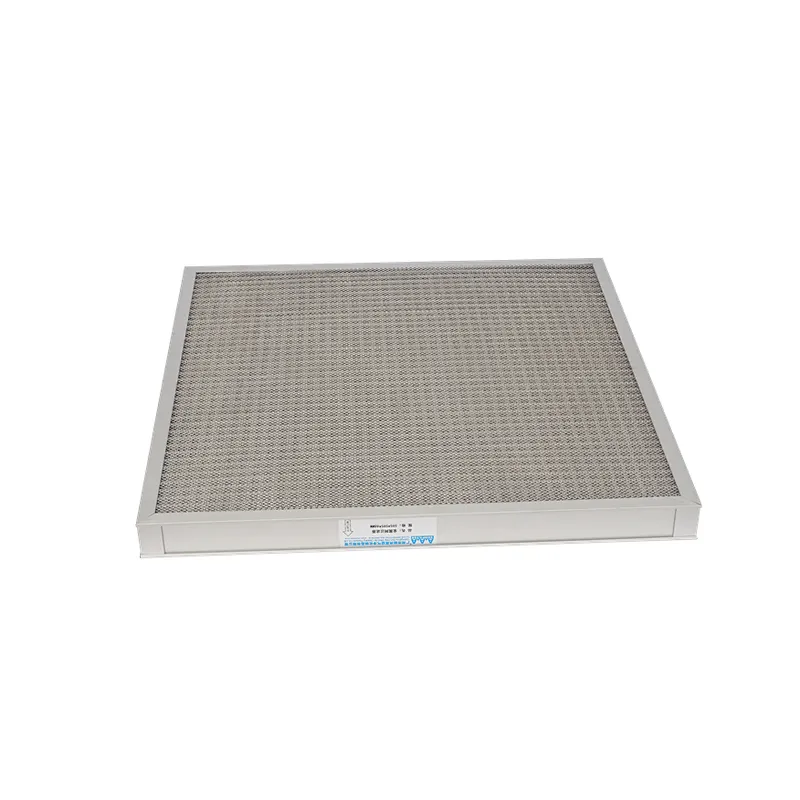

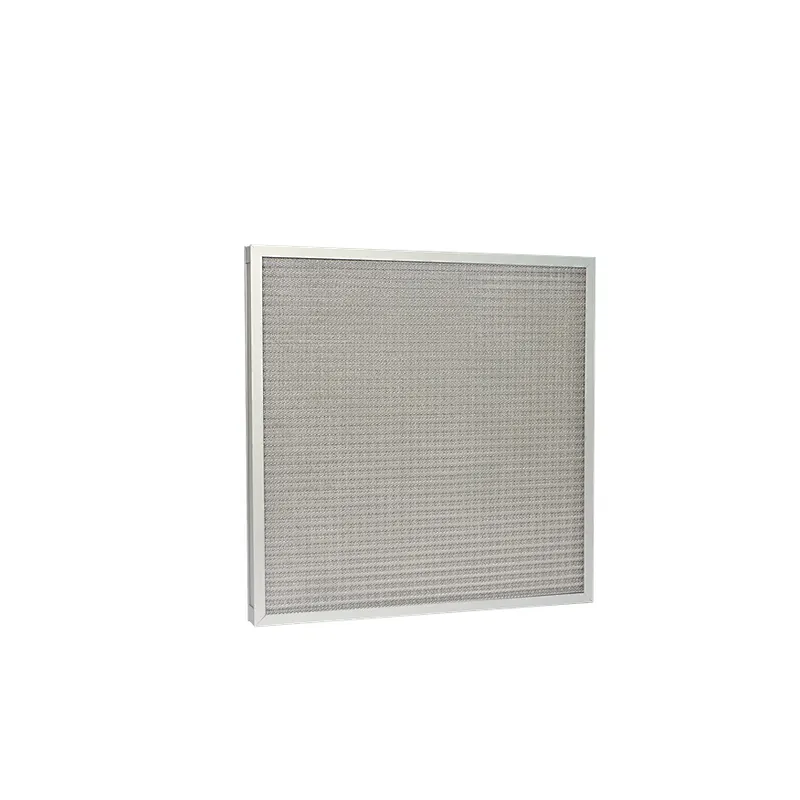

Filter Media: metal mesh filter pre filter have aluminum mesh, stainless steel expanded mesh to be choosing
Frame: metal mesh filter pre filter have aluminum alloy, stainless steel
Specification
| 类型 Type | 尺寸 Dimensions (mm) | 额定风量 Rated Airflow (m3/h) | 初阻力 Initial Resistance (Pa) |
| SHW-JS | 595*595*21 | 3400 | 20 |
| 595*495*21 | 2800 | ||
| 595*295*21 | 1700 | ||
| 595*595*46 | 3400 | 40 | |
| 595*495*46 | 2800 | ||
| 595*295*46 | 1700 |
